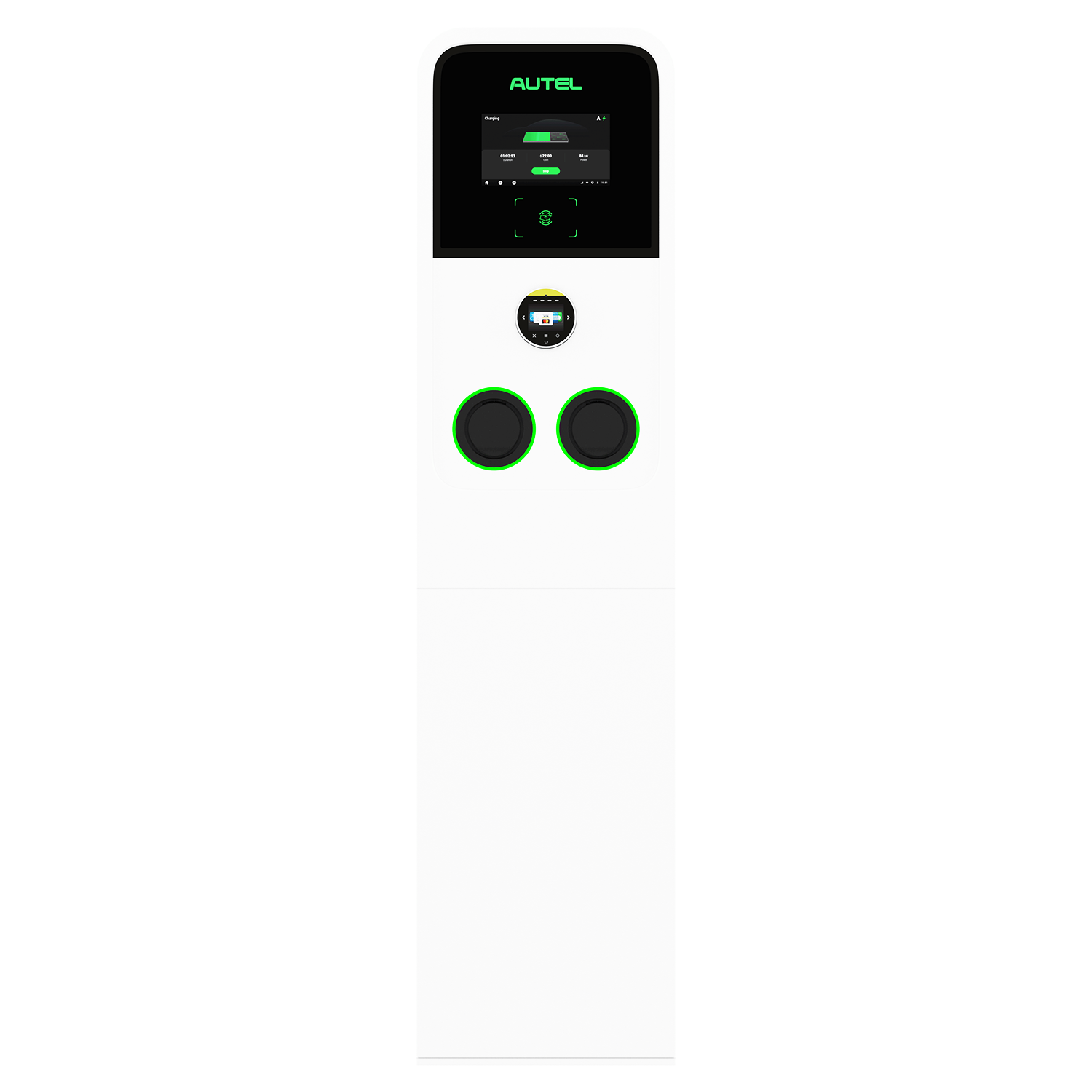

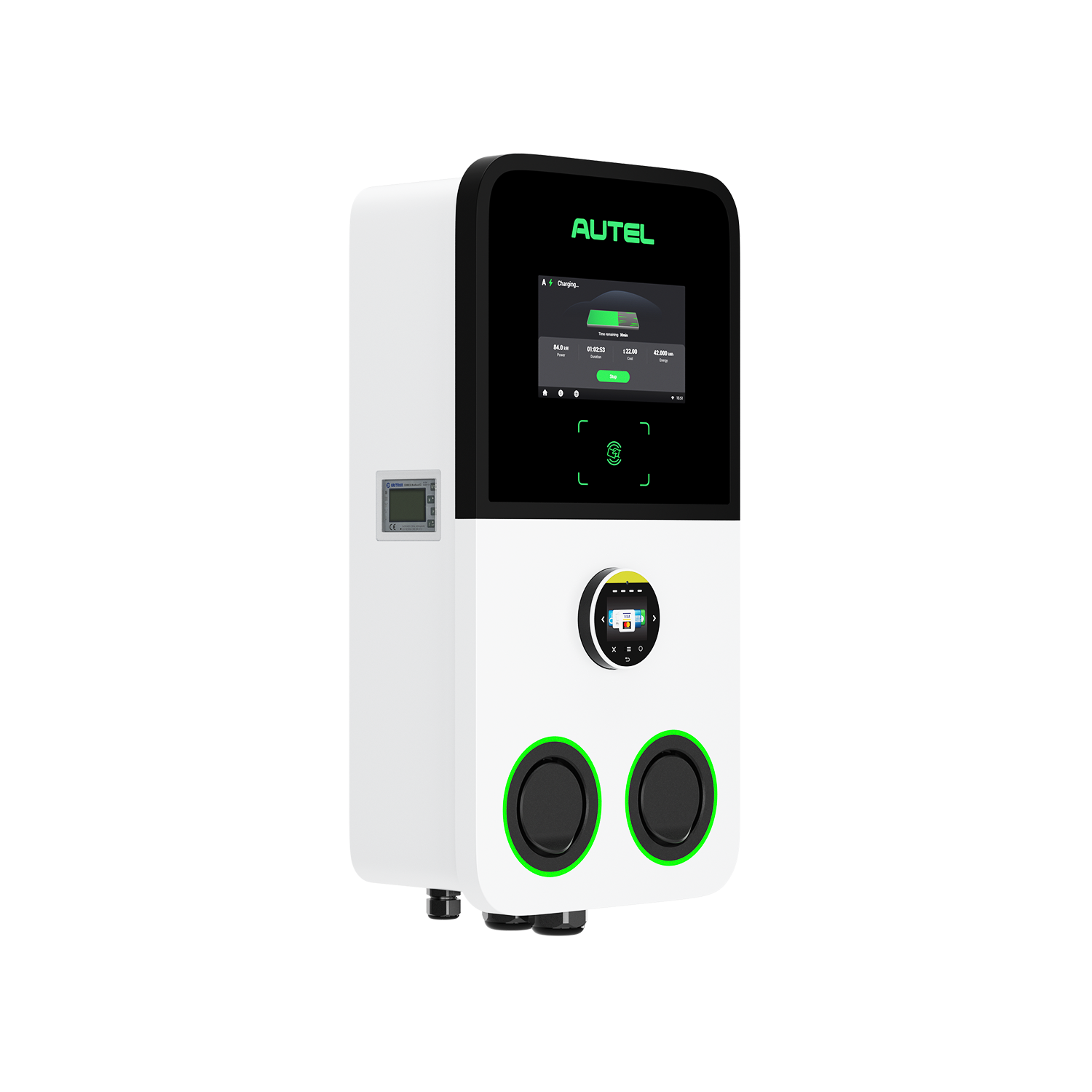

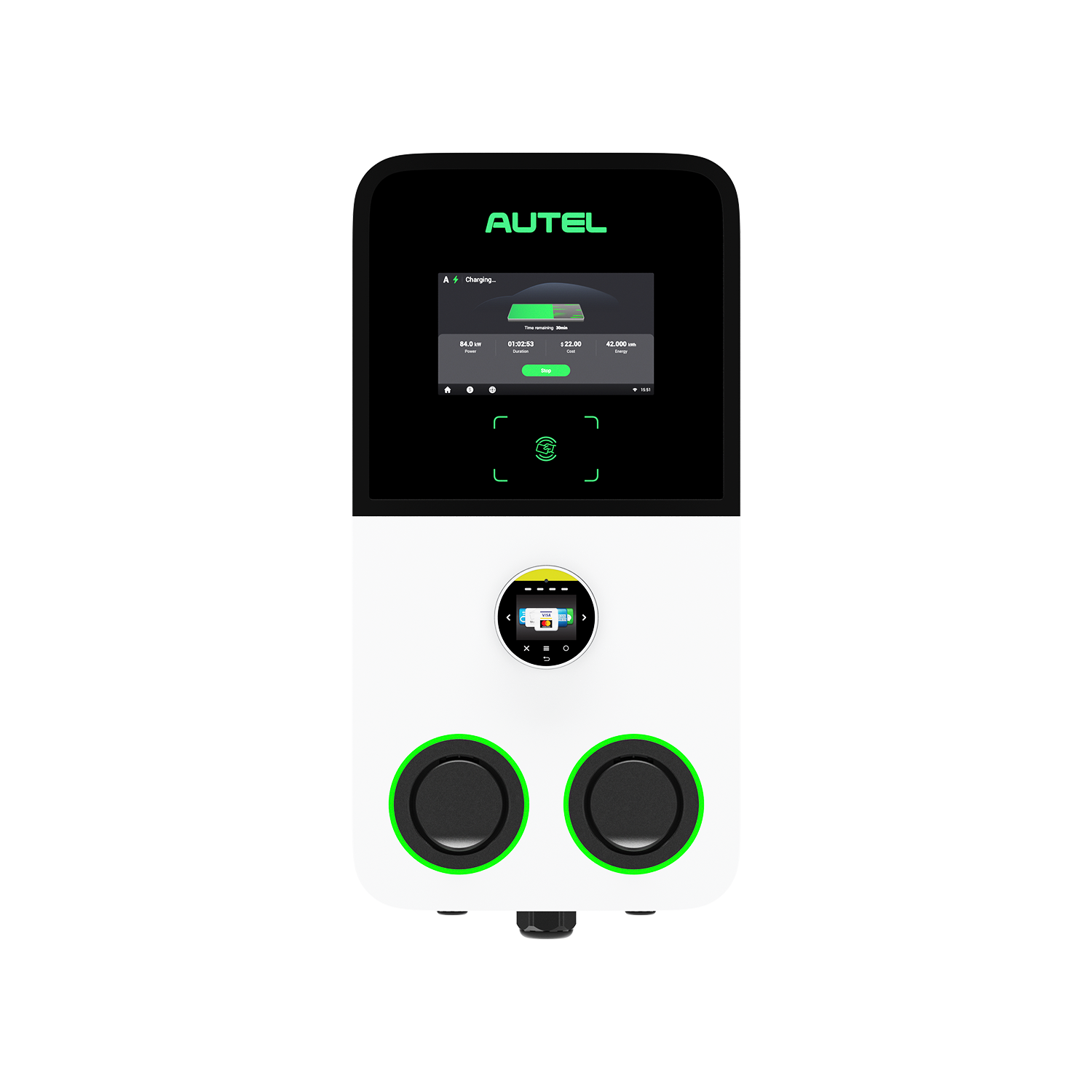

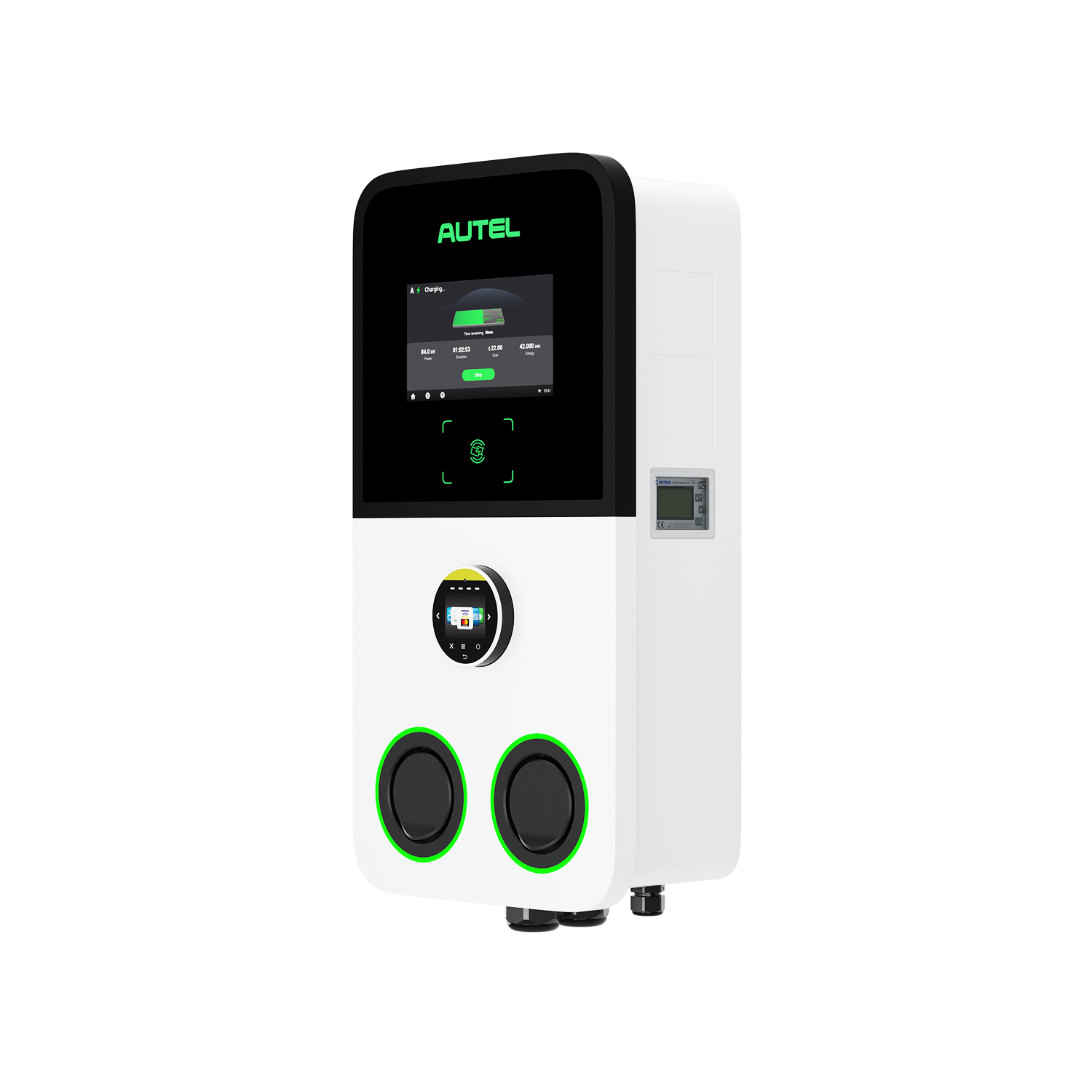

MaxiCharger AC Ultra
2 * 22kW

The Ultimate Dual Vehicle AC Charger

22kW per port this charger leads the industry by fast charging 2 vehicles simultaneously, and generates 140 km of range within 60 min
Designed with ISO 15118 Plug & Charge, for a hassle-free charging experience

Contact Us

Specification

Product Information:

Charging modeMode 3
Input/output power rating and currentThree phase up to 2*22kW/32A
Input/output voltage400V±15%, three phase; 50Hz  (UK: 400V±15%, three phase; 50Hz)
Network typeTT, TN, IT
Connector typeIEC 62196 Type 2 Socket or Socket with shutter
Residual current detectionAC 30mA + DC 6mA
ProtectionOvercurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
Card readerISO 15693, ISO 14443
Power measurement accuracy+/- 1.0%; Build-in MID Certified meter

AC output connector:

Grounding system 3P, N, PE
Input voltage 3-phase 400V AC±10 %
Input frequency 50 Hertz
Power factor ≥0.99
Harmonic distortion(THDi) ≤ 5%

General Features :

IP ratingIP54
Operating altitude2,000 m
Operating temperature range-40℃~+55℃
Storage temperature range-40℃~+85℃

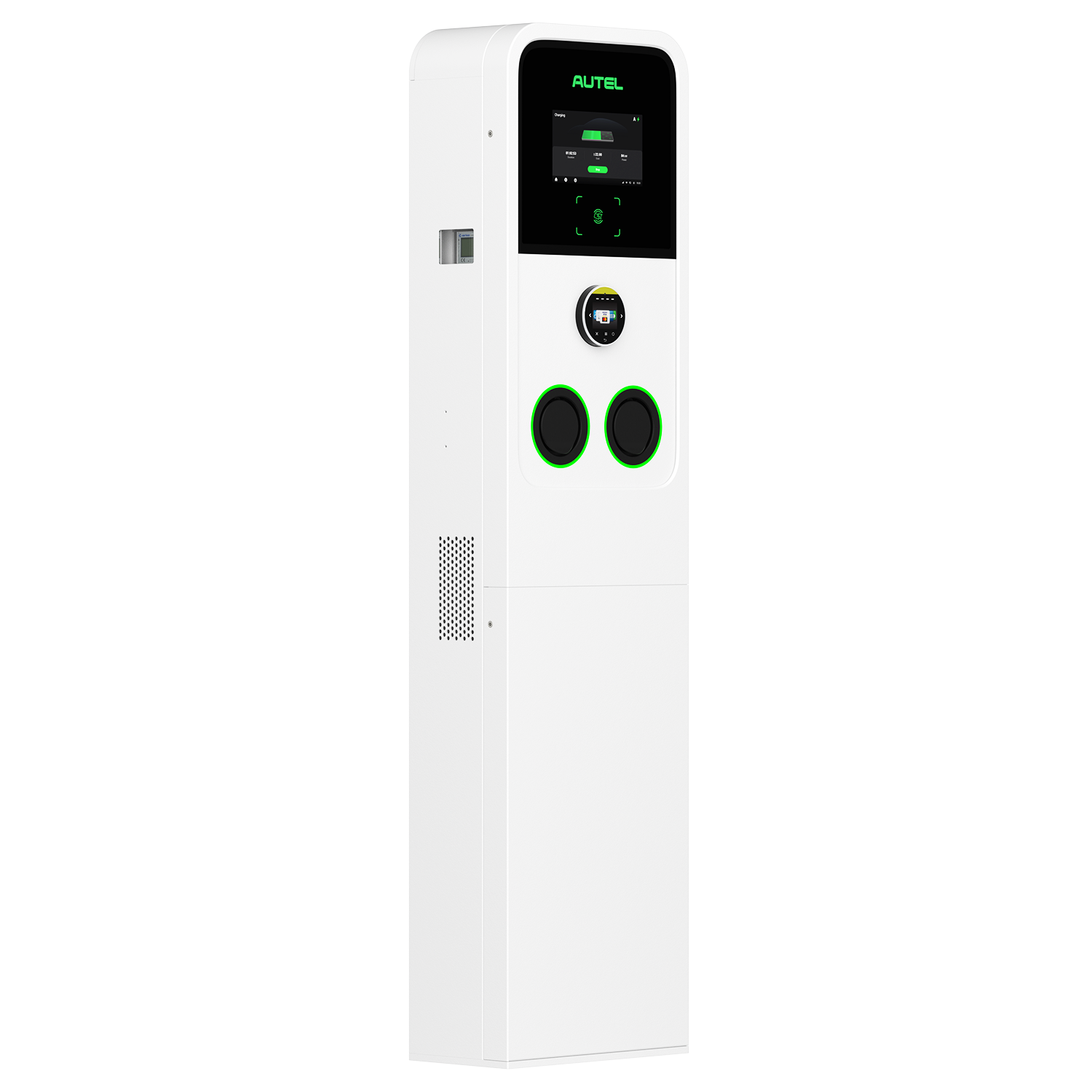

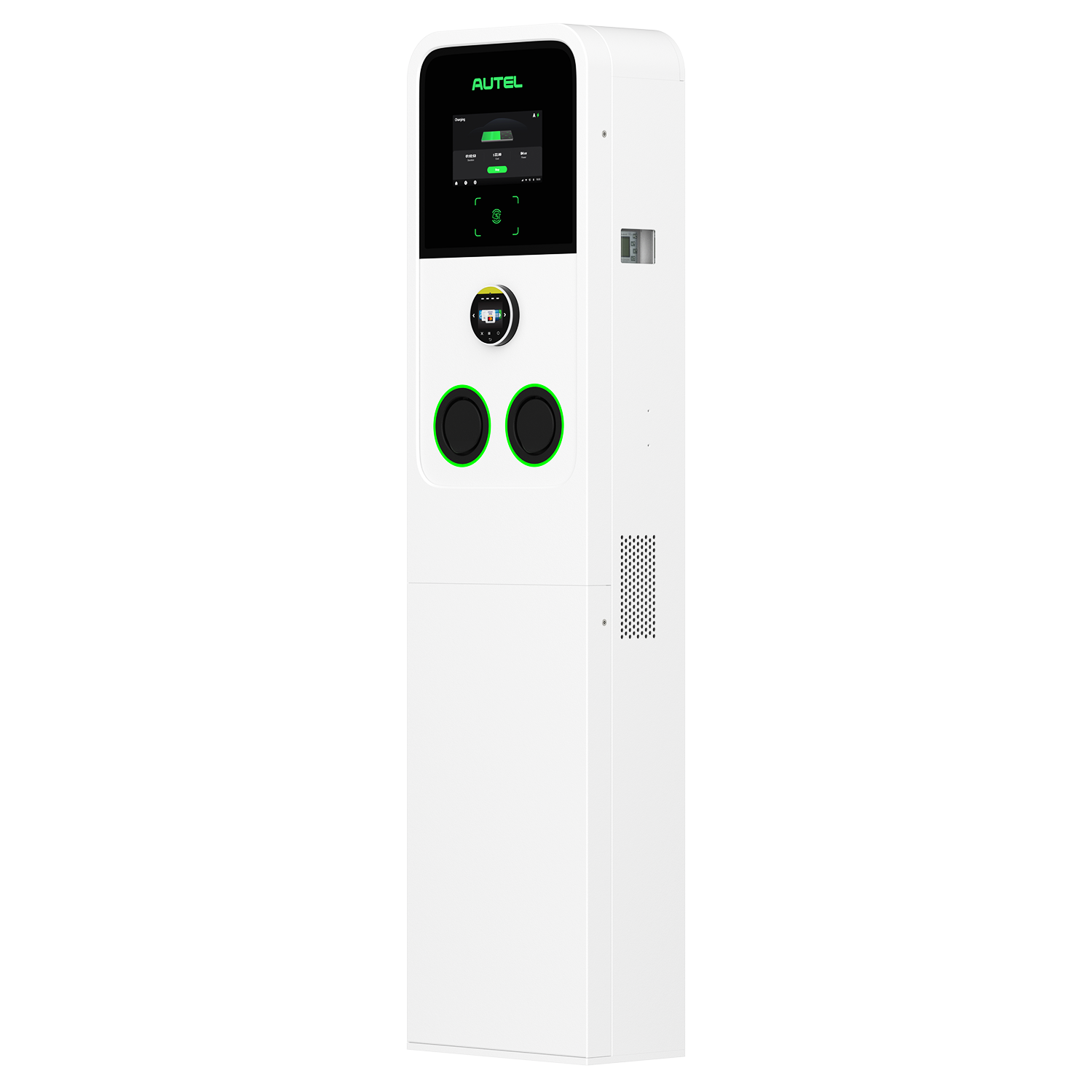

Mounting Wall or floor standing using a pedestal
Dimensions (H × W × D) 625 x 320 x 170mm

User Interface:

Status indicationLED/APP/LCD (8 inch touch screen, 1280*720)
User interfaceAutel Charge APP; Autel Charge Cloud
ConnectivityBluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
Communication protocols            OCPP 1.6J (OCPP 2.0 Upgradable)
User authenticationAPP, RFID card, Credit Card (Optional)
Software update OTA updates via web portal

Certification and Standards:

Safety and Compliance                         IEC 61851-1, IEC 62311, IEC 62479, IEC 62955
CertificationCE (TUV), Eichrechtskonform (Optional)
Warranty 36 months, warranty extension possible

DC Compact Installation and Operation Manual

DC COMPACT MANUAL - ENGLISH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - FRENCH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - SWEDISH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - POLISH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - DUTCH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - ITALIAN

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - RUSSIAN

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - DANISH

View and download DC Compact guide by clicking on the button below.

View

DC COMPACT MANUAL - GERMAN

View and download DC Compact guide by clicking on the button below.

View

High Safety

Multi-layer Protection Technology

  • Charger+Cloud BMS+VCI triple protection, real-time big data analysis, and multiple safety pre-warning, ensuring the charging environment is safe
  • Health charging mode to prevent overcharge and increase battery safety
  • EV battery real-time status monitoring to prevent thermal runaway

Long Lasting

Intelligent Battery Diagnostic Technology

  • Longer battery life up to 20% by using our industry leading AI algorithm
  • EV battery protection through health charging mode

High Compatibility and Reliability

Super-high Compatibility

  • Compatible with 99.5% EV models with a one-time successful charging rate up to 99%
  • Operating temperature range at -30°C to +55°C
  • Peak conversion efficiency up to 96% with Huawei HiCharger DC fast charging module

High Convenience

Charging Management with Cloud System and APP

  • Remote management via Autel Charge
  • Remote update and diagnosis
  • Self-developed SaaS platform management system

Large Capacity Hoster

Unleash the power of charging

  • Up to 640kW of power (Hoster)
  • A 10 min charge equates to 400 km of range
  • Max. 650A liquid-cooling & low-temp fast charging

Flexible Configuration Dispensers

Seamless Charging Experience

  • Charge 8 vehicles simultaneously
  • Maximum output voltage of up to 950V
  • CMS Design

User Friendly Design

Unlock the best user experience

  • With an 8/15.6-inch LCD touch screen
  • POS terminals simplify the payment process
  • Ideal solution for fleet and bus charging requirements
