MAXICHARGER
AC COMPACT

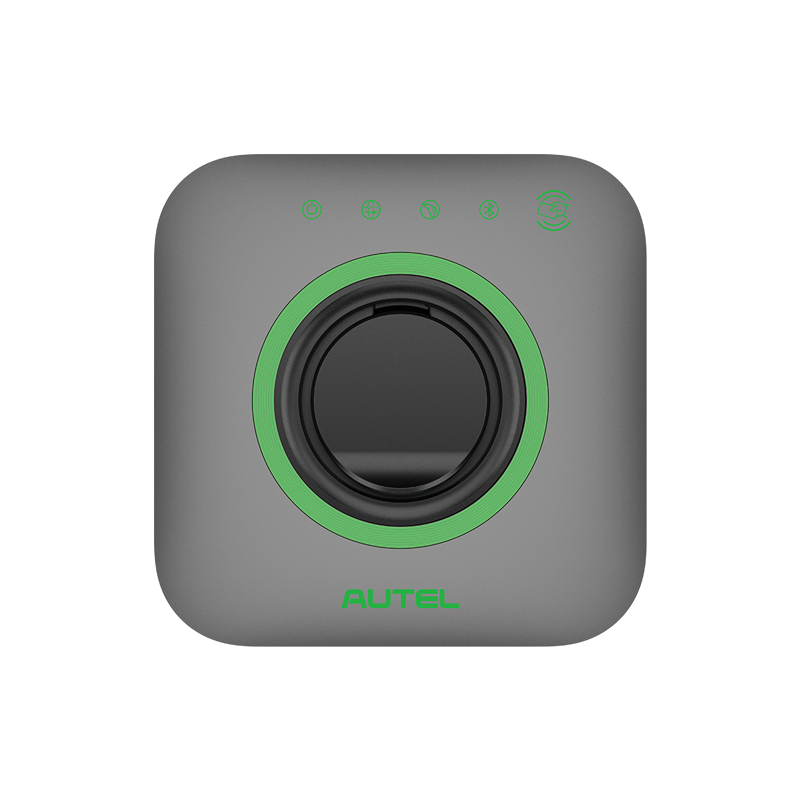

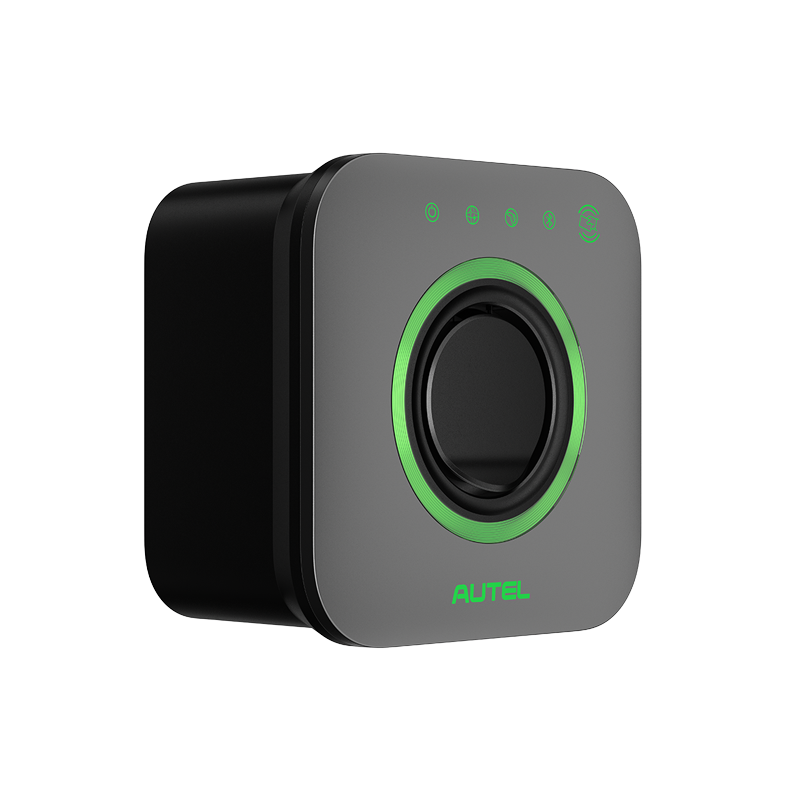

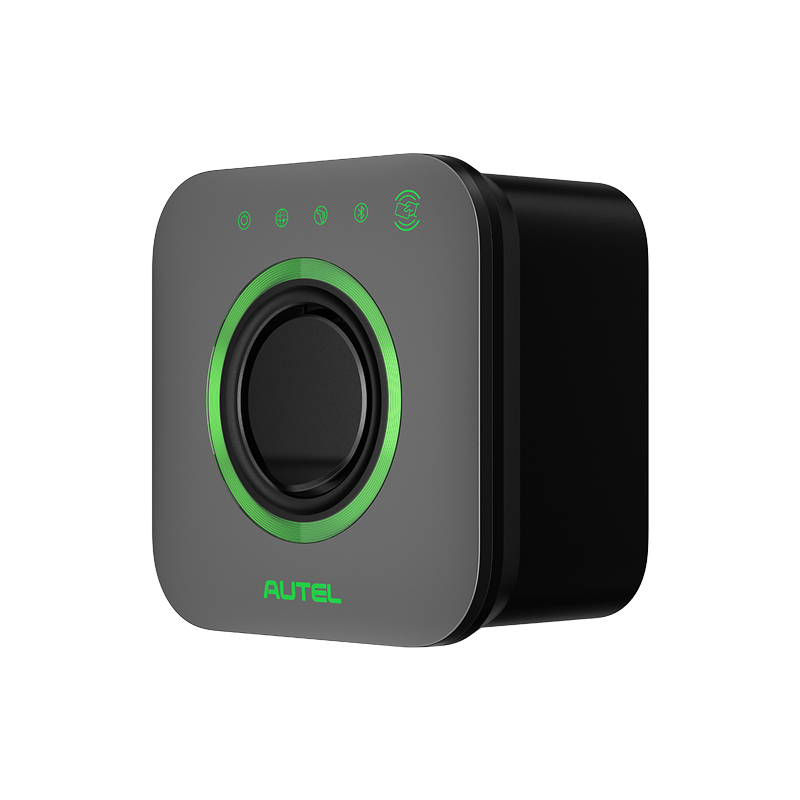

MaxiCharger AC Compact
7.4kW｜22kW
The Ultimate Cost-effective AC Charger
Up to 22kW AC charging
Features modular design, it is easier than ever to install and maintain at lower costs
Specification
Product information:
| Charging mode | Mode 3 |
|---|---|
| Input/output power rating and current | Single phase up to 7.4kW/32A; Three phase up to 22kW/32A |
| Input/output voltage | 230V±15%, single phase; 400V±15%, three phase; 50Hz(UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz) |
| Network type | Single phase 3 Wire – L1, N, PE Three phase 5 Wire – L1, L2, L3, N, PE |
| Connector type | IEC 62196 type 2 normal socket |
| Residual current detection | AC 30mA + DC 6mA |
| Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
| Card reader (Optional) | ISO 14443 |
| Power measurement accuracy | +/- 2.0% |
AC output connector:
| Grounding system | 3P, N, PE |
|---|---|
| Input voltage | 3-phase 400V AC±10 % |
| Input frequency | 50 Hertz |
| Power factor | ≥0.99 |
| Harmonic distortion | (THDi) ≤ 5% |
General Features :
| IP rating | IP54 |
|---|---|
| Operating altitude | 2,000 m |
| Operating temperature range | -30℃~+50℃ |
| Storage temperature range | -40℃~+70℃ |
| Mounting | Wall or floor standing using a pedestal |
| Dimensions (H × W × D) | 202 × 202 × 115 mm |
User Interface:
| Status display | LED/APP |
|---|---|
| User interface | Autel Charge APP; Autel Charge Cloud |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, RS485, 4G, Modbus TCP/IP |
| Communication protocols | OCPP 1.6J |
| User authentication | APP, AutoStart, RFID card |
| Software update | OTA updates via web portal |
Certification and Standards:
| Safety and Compliance | IEC 61851-1, EN 50663, EN 50665, IEC/EN62955 |
|---|---|
| Certification | CE (TÜV) |
| Warranty | 36 months, warranty extension possible |
DC Compact Installation and Operation Manual
High Safety
Multi-layer Protection Technology
- Charger+Cloud BMS+VCI triple protection, real-time big data analysis, and multiple safety pre-warning, ensuring the charging environment is safe
- Health charging mode to prevent overcharge and increase battery safety
- EV battery real-time status monitoring to prevent thermal runaway
Long Lasting
Intelligent Battery Diagnostic Technology
- Longer battery life up to 20% by using our industry leading AI algorithm
- EV battery protection through health charging mode
High Compatibility and Reliability
Super-high Compatibility
- Compatible with 99.5% EV models with a one-time successful charging rate up to 99%
- Operating temperature range at -30°C to +55°C
- Peak conversion efficiency up to 96% with Huawei HiCharger DC fast charging module
High Convenience
Charging Management with Cloud System and APP
- Remote management via Autel Charge
- Remote update and diagnosis
- Self-developed SaaS platform management system
Large Capacity Hoster
Unleash the power of charging
- Up to 640kW of power (Hoster)
- A 10 min charge equates to 400 km of range
- Max. 650A liquid-cooling & low-temp fast charging
Flexible Configuration Dispensers
Seamless Charging Experience
- Charge 8 vehicles simultaneously
- Maximum output voltage of up to 950V
- CMS Design
User Friendly Design
Unlock the best user experience
- With an 8/15.6-inch LCD touch screen
- POS terminals simplify the payment process
- Ideal solution for fleet and bus charging requirements
