MAXICHARGER
Megawatt Charging System (MCS)

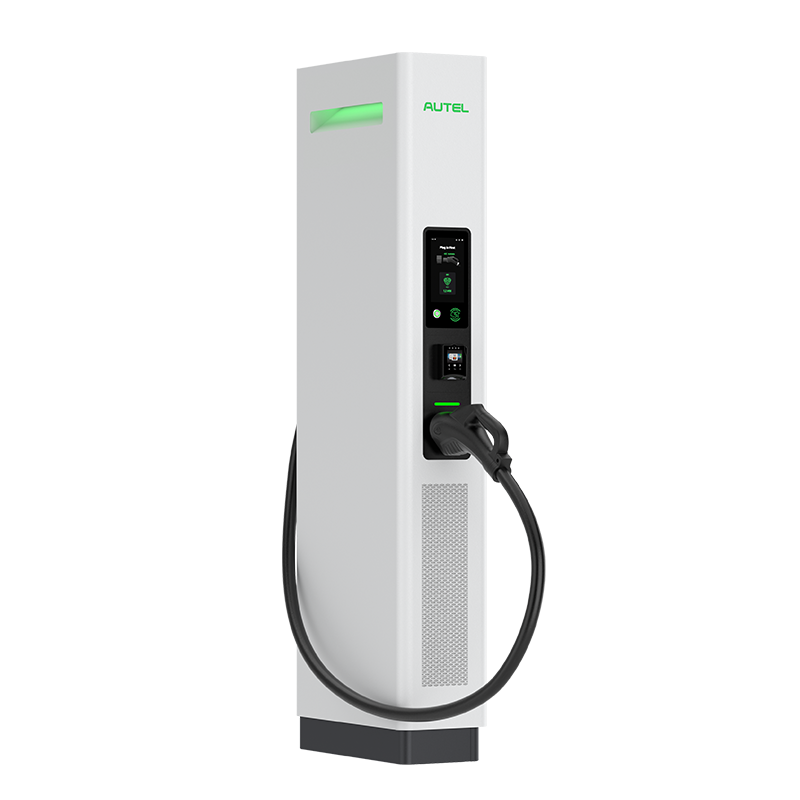

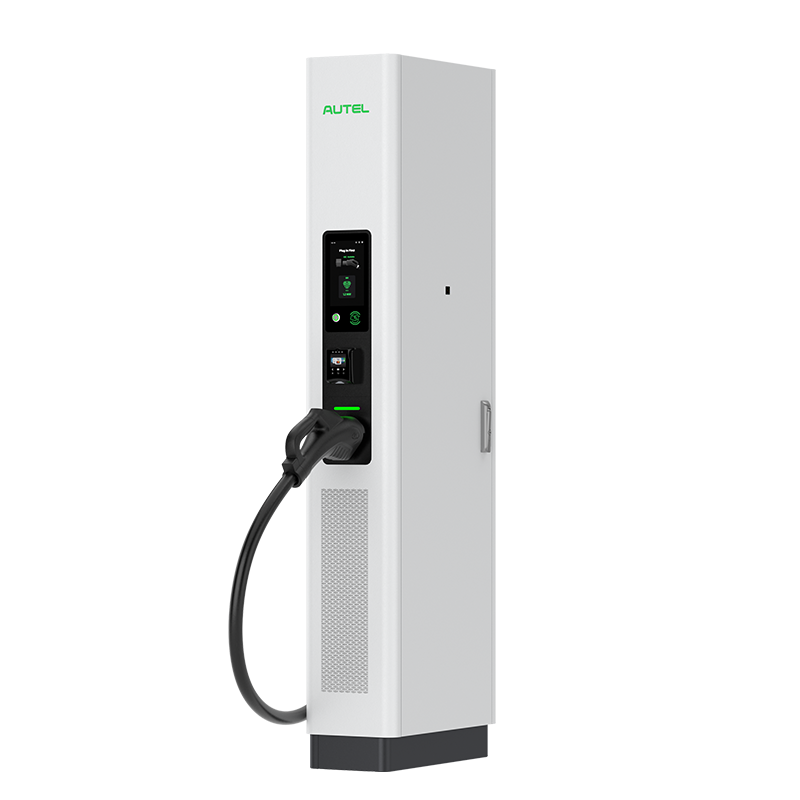

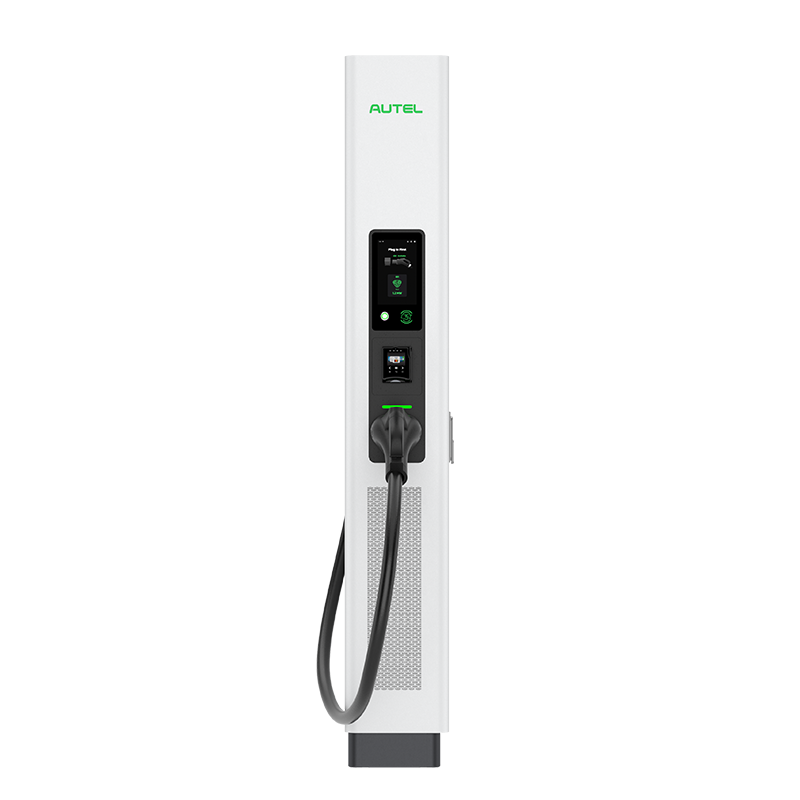

MaxiCharger MCS
Max. 1.2MW
Industry-Leading Superfast Charging
The Megawatt Charging Solution boasts a remarkable peak 1.2MW charging power coupled with satellite compatibility ensuring seamless integration with the MCS plug.
The Maxicharger MCS is vital for meeting stringent EU CO2 regulations, driving the adoption of electric heavy-duty trucks, and supporting the 2025 decarbonization goals.
Get in touch to discuss your needs for a superfast charging solution.
Ultra-Fast Charging Experience
Unlease the power of charging
- Up to 1.2MW charging power
- Maximum output current of 1500A
Streamlined Satellite Dispenser
Modular cabinet design
- Compact profile reduces installation footprint
- Modular design simplifies both operation and maintenance
Streamlined Satellite Dispenser
Modular cabinet design
- Compact profile reduces installation footprint
- Modular design simplifies both operation and maintenance
Design for Multiple Scenarios
Unlock the best user experience
- Tailored solutions for heavy-duty charging needs
- Ideal solution for fleet and bus charging requirements
Specification (Dispenser)
DC output connector:
| Charging mode | MCS |
|---|---|
| Output power | Max. 1.2MW |
| Output voltage | 150 -1000V |
| Output current | Up to 1500A |
| Number of outputs | 1*MCS |
AC output connector:
| Grounding system | 3P, N, PE |
|---|---|
| Input voltage | 3-phase 400V AC±10 % |
| Input frequency | 50 Hertz |
| Power factor | ≥0.99 |
| Harmonic distortion | (THDi) ≤ 5% |
General Features :
| IP rating | IP55 |
|---|---|
| Operating altitude | 3,000 m |
| Operating temperature range | -35℃~+55℃ |
| Storage temperature range | -40℃~+70℃ |
| Mounting | Floor Standing |
| Dimensions (W × D × H) | 650*300*2050 mm |
| Screen type | 8 inch |
| Cable length | 5m |
User Interface:
| Software update | OTA updates via web portal |
|---|---|
| Status indication | LED/LCD/APP |
| Connectivity | Ethernet |
| Communication protocols | OCPP 1.6J (OCPP 2.0 Upgradable) |
| User authentication | APP, RFID card, QR code, Credit Card (Optional) |
| Credit card readers | NAYAX, Payter |
Certification and Standards:
| Safety and Compliance | IEC 61851-1; IEC 61851-23; IEC 61851-21-2;ISO 15118 |
|---|---|
| Certification | CE, CB, UKCA |
| Warranty | Standard 24 months, warranty extension possible |
